Product Description And Features

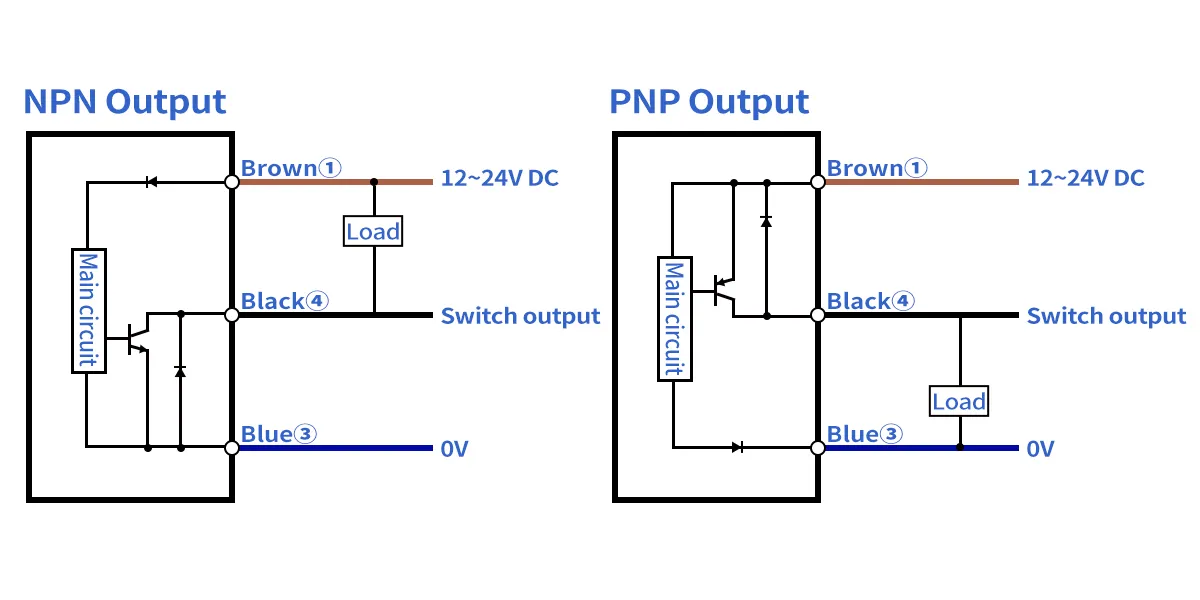

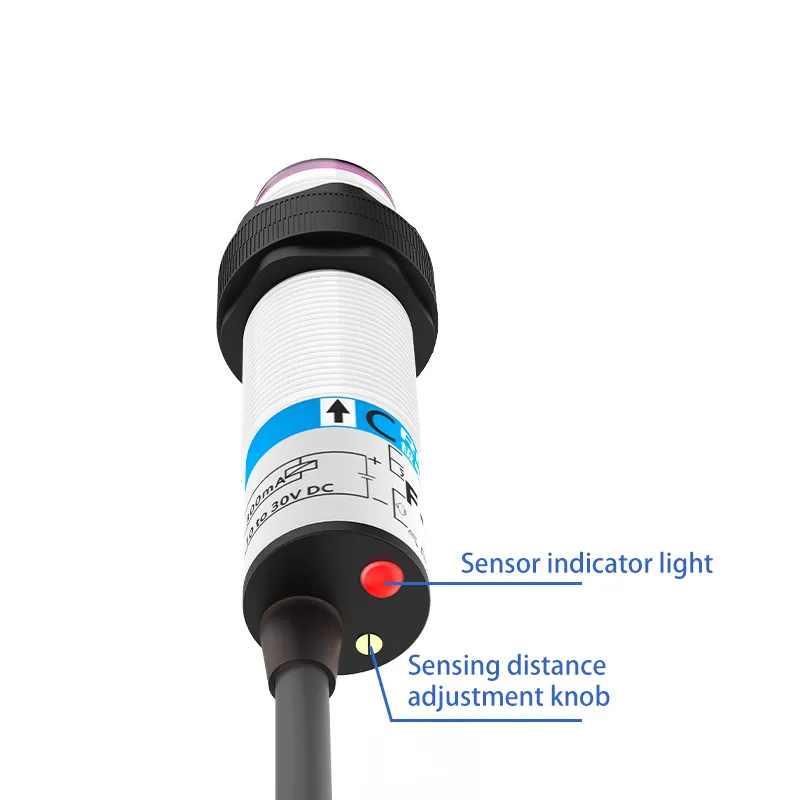

To ensure compatibility with various control systems, the sensor supports a variety of output configurations, including NPN, PNP, and AC 2-wire, enabling flexible integration into different automation systems. Equipped with an output status indicator, the sensor allows users to monitor signal output status in real-time, ensuring equipment reliability and visual feedback during operation. In terms of design, the sensor utilizes a 2M PVC cable and M12 connector, further enhancing installation flexibility in diverse environments and adapting to complex industrial scenarios.
Combined with its powerful detection capabilities and durable design, the M18 through-beam photoelectric sensor is particularly suitable for object detection, position positioning, counting, and other industrial control tasks that require high precision and reliability in automated production lines.
Technical Specifications
| Technical specifications | |
| DC 3-Wire NPN NO | E3F-18D5MN1 |
| DC 3-Wire NPN NC | E3F-18D5MN2 |
| DC 4-Wire NPN NO+NC | E3F-18D5MN3 |
| DC 3-Wire PNP NO | E3F-18D5MP1 |
| DC 3-Wire PNP NC | E3F-18D5MP2 |
| DC 4-Wire PNP NO+NC | E3F-18D5MP3 |

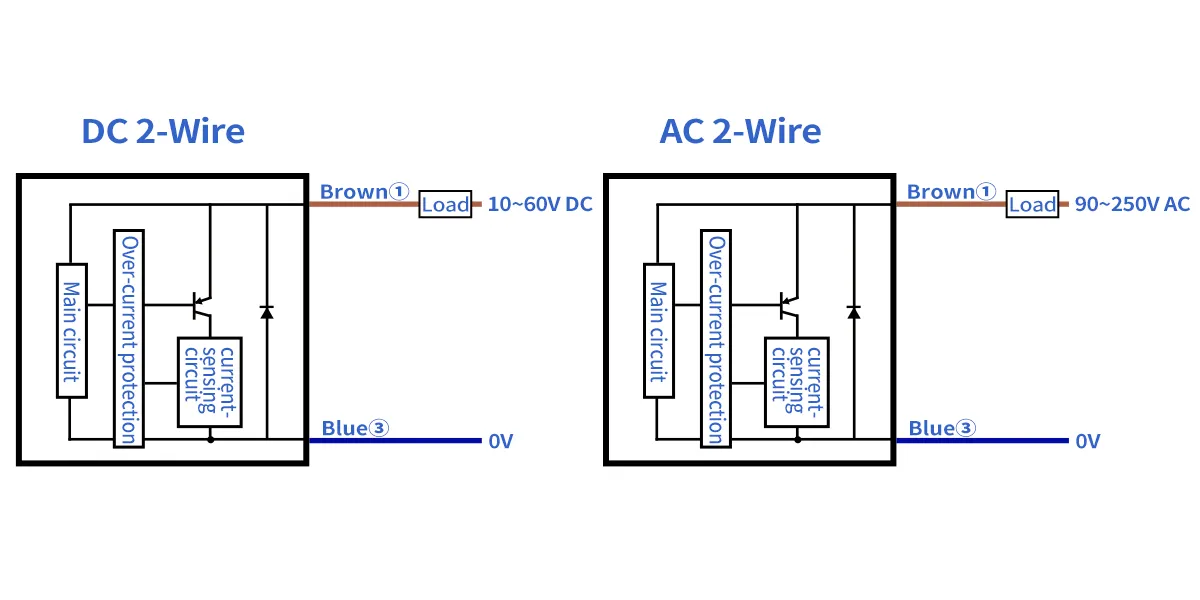

| AC 2-wire NO | E3F-18D5MA1 |
| AC 2-wire NC | E3F-18D5MA2 |

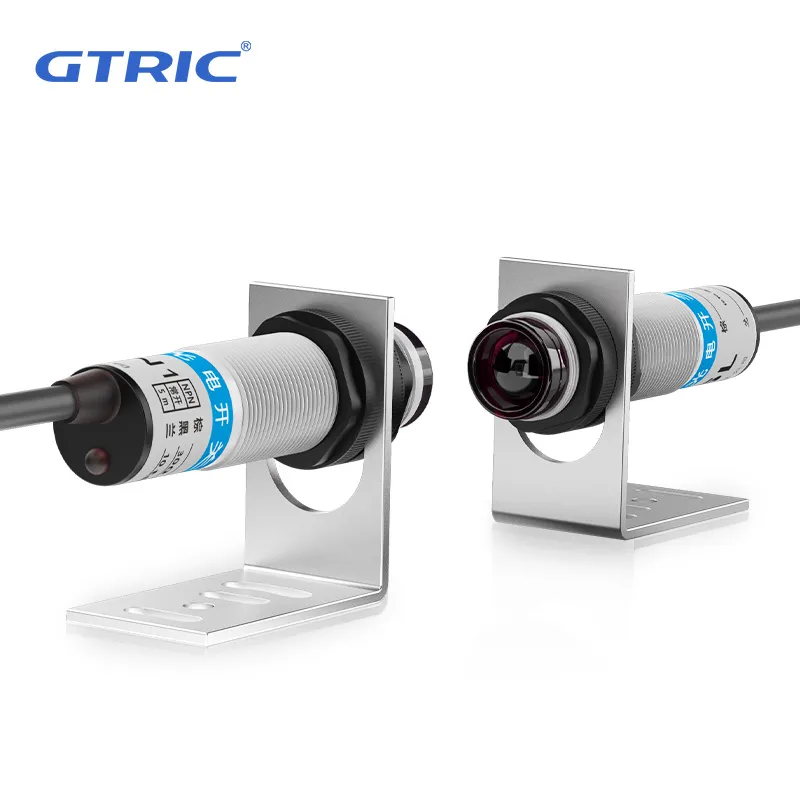

| Detection type | Through-beam |
| Sensingdistance | 5M |
| Adjustment method | Tail potentiometer |
| Hysteresis | ≤10% |
| Light pointing angle | 3°-20° |
| Standard targe | White card reflcetion rate 90% |
| Light Source | Infrared LED 660 nm |
| Detection target | Opaque Objects and Transparent Objects |
| Leakage current | ≤0.6mA |
| Response frequency(F) | 600Hz（DC）25Hz（AC） |
| Ambient illuminance | incandescent light≤3000Lux sunshine≤1000Lu |
| Consunption current | ≤15mA |
| Load current | 200mA |
| Voltage drop | DC≤1V AC≤7V |
| Circuit Protection | Short-circuit , EMl protectionrever , sepolarityprotection |
| Output indicator | Red LED |
| Ambient temperature | -20~+55℃ |
| Vibration | 1mm amplitude at frequency 10~55Hz(for 1 min）ineach X.Y.Z direction for 2hours |
| Protectiondegree | IP65 |

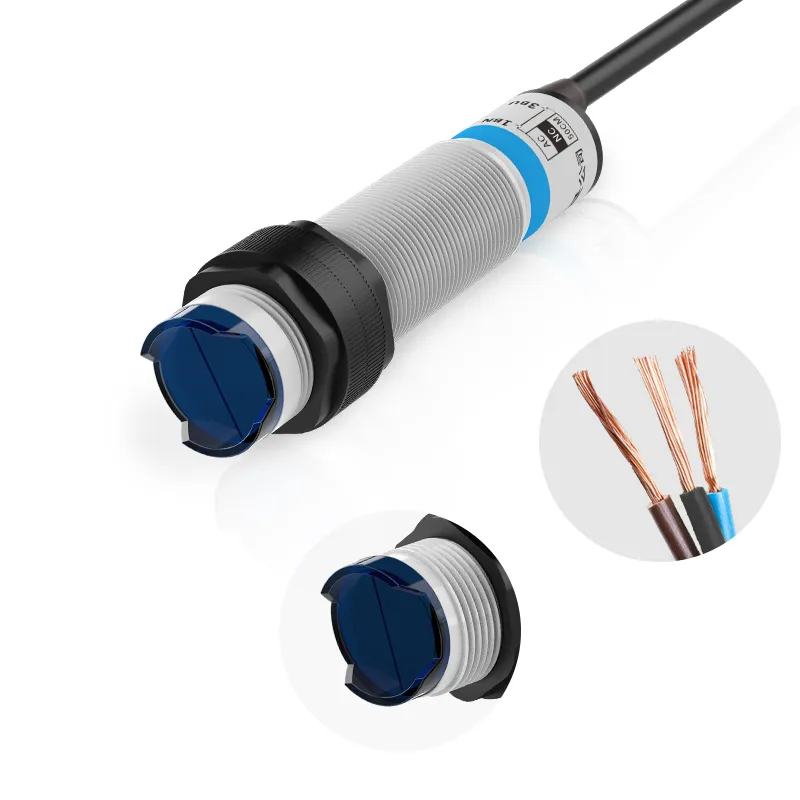

| Connection | 2M PVC Cable or M12 Connector |
| Meterial | ABS |
| Sensing side | PC |
