IP67 Protected Retroreflective Photoelectric Sensor

Whether in automated production lines, warehouse management systems, or automated car wash equipment where wet and moisture-laden conditions prevail, this sensor offers a reliable object detection solution. With outstanding performance and durability, it not only enhances operational efficiency but also reduces maintenance costs, making it a trusted choice for various industrial applications.

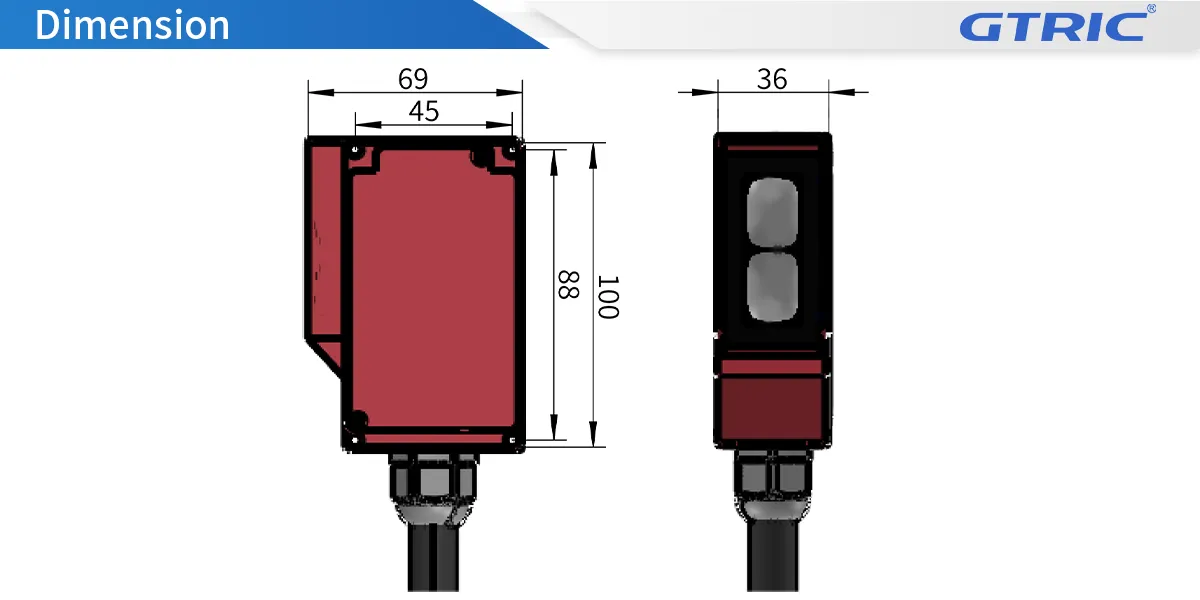

Housing Size：36*69*98 MM Square
Detection type：Retro-reflective
Sensing Distance：10M

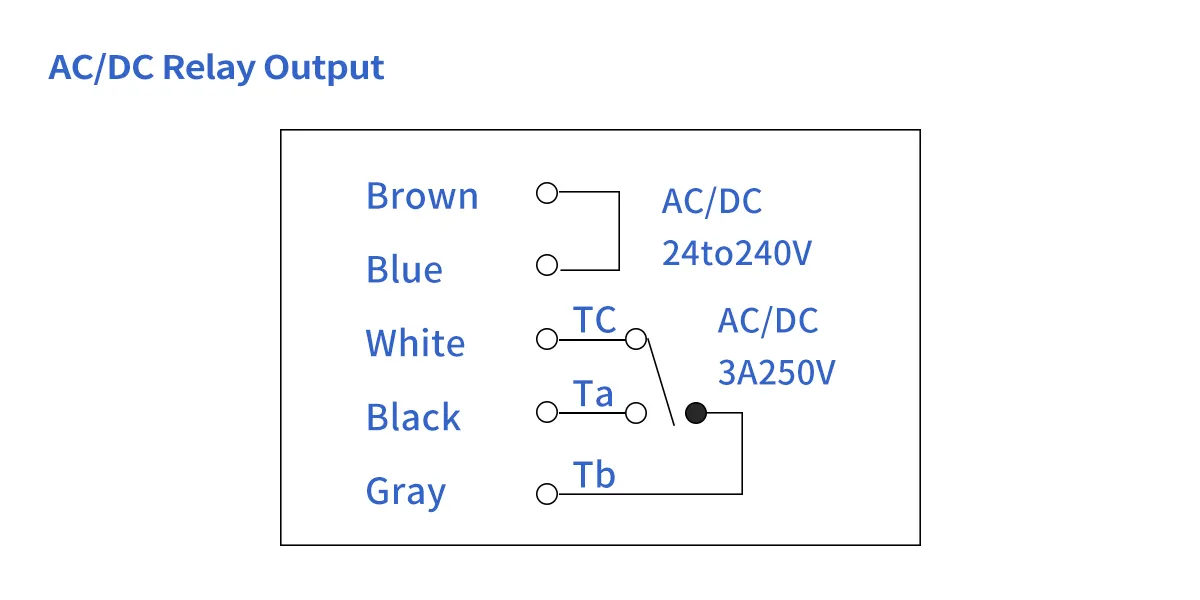

Output Method：5-Wire Relay Output
Connect：Cable
Protection level：IP67

Product Description And Features

This IP67-rated Retroreflective photoelectric sensor is engineered for demanding environments, offering exceptional dustproof and waterproof performance, ensuring reliable operation in humid, dusty, and even underwater conditions. With a 10M sensing range and versatile output options (AC relay outputs DC relay outputs AC/DC relay outputs), this sensor integrates seamlessly into a wide variety of automation systems, making it ideal for diverse applications. Its broad voltage range of 24-240V and a maximum load capacity of 4A ensure robust adaptability to complex operational conditions.

The sensor’s design enhances both flexibility and ease of use. The top-mounted potentiometer allows precise adjustment of sensing distance to suit different requirements, while the clear red LED indicator provides instant feedback, simplifying both setup and maintenance. Its flame-retardant, corrosion-resistant, and moisture-proof ABS housing ensures long-term durability, even in high-temperature or corrosive environments.

Technical Specifications

Technical specifications
DC 5-wire Relay	E3-K100-R10MDJ
AC 5-wire Relay	E3-K100-R10MAJ
DC/AC 5-wire Relay	E3-K100-R10MGJ
Detection type	Retro-refective
Sensing distance	0-10M
Operating Voltage	DC 5-wire Relay:12-24VDC ; AC 5-wire Relay:90-250V AC DC/AC 5-wire Relay:24-240V DC/AC
Adjustment method	Head potentiomete
Standard Sensing Object	Opaque/Translucent
Directional Angle	3°-10°
Light Source	Red light-emitting diode (624 nm)
Leakage current	≤1.1mA
Response frequency(F)	600Hz（DC）25Hz（AC）
Response time	＜20ms
Consunption current	30mA Max
Load current	NPN 3-wire/NPN 3-wire/AC 2-wire:200mA Max Relay:4A Max
Voltage drop	DC≤1V AC≤10V
Circuit Protection	Short-circuit , EMl protectionrever , sepolarityprotection
Output indicator	Red LED
Ambient temperature	-20~+55℃
Ambient illuminance	incandescent light≤3000Lux sunshine≤1000Lu
Vibration	1mm amplitude at frequency 10~55Hz(for 1 min）ineach X.Y.Z direction for 2hours
Protectiondegree	IP67
Connection	2M PVC Cable
Meterial	ABS
Sensing side	PMMA

SKU 91 Category IP67 Photoelectric Sensor
