IP67 Protected Through-beam Photoelectric Sensor

The sensor’s design enhances both flexibility and ease of use. The top-mounted potentiometer allows precise adjustment of sensing distance to suit different requirements, while the clear red LED indicator provides instant feedback, simplifying both setup and maintenance. Its flame-retardant, corrosion-resistant, and moisture-proof ABS housing ensures long-term durability, even in high-temperature or corrosive environments.
  • Housing Size：36*69*98 MM Square
  • Detection type：Through-beam
  • Sensing Distance：10M/20M
  • Output Method：5-Wire Relay Output
  • Connect：Cable
  • Protection level：IP67
Request a Quote
PDF Download

Product Description And Features

This IP67-rated Through-beam photoelectric sensor is engineered for demanding environments, offering exceptional dustproof and waterproof performance, ensuring reliable operation in humid, dusty, and even underwater conditions. With a 10M or 20M sensing range and versatile output options (AC relay outputs DC relay outputs  AC/DC relay outputs), this sensor integrates seamlessly into a wide variety of automation systems, making it ideal for diverse applications. Its broad voltage range of 24-240V and a maximum load capacity of 4A ensure robust adaptability to complex operational conditions.

Whether in automated production lines, warehouse management systems, or automated car wash equipment where wet and moisture-laden conditions prevail, this sensor offers a reliable object detection solution. With outstanding performance and durability, it not only enhances operational efficiency but also reduces maintenance costs, making it a trusted choice for various industrial applications.

Technical Specifications

Technical specifications
DC 5-wire Relay E3-K100-D10MDJ \
AC 5-wire Relay E3-K100-D10MAJ \
DC/AC 5-wire Relay E3-K100-D10MGJ E3-K100-D20MGJ
Detection type Through-beam
Sensing distance 10M 20M
Operating Voltage DC 5-wire Relay:12-24VDC ; AC 5-wire Relay:90-250V AC

DC/AC 5-wire Relay:24-240V DC/AC
Adjustment method Head potentiomete
Standard Sensing Object Opaque/Translucent
Directional Angle 3°-10°
Light Source Red light-emitting diode (624 nm)
Leakage current ≤1.1mA
Response frequency(F) 600Hz（DC）25Hz（AC）
Response time ＜20ms
Consunption current 30mA Max
Load current NPN 3-wire/NPN 3-wire/AC 2-wire:200mA Max

Relay:4A Max
Voltage drop DC≤1V AC≤10V
Circuit Protection Short-circuit , EMl protectionrever , sepolarityprotection
Output indicator Red LED
Ambient temperature -20~+55℃
Ambient illuminance  incandescent light≤3000Lux  sunshine≤1000Lu
Vibration 1mm amplitude at frequency 10~55Hz(for 1 min）ineach X.Y.Z direction for 2hours
Protectiondegree IP67
Connection 2M PVC Cable
Meterial ABS
Sensing side PMMA

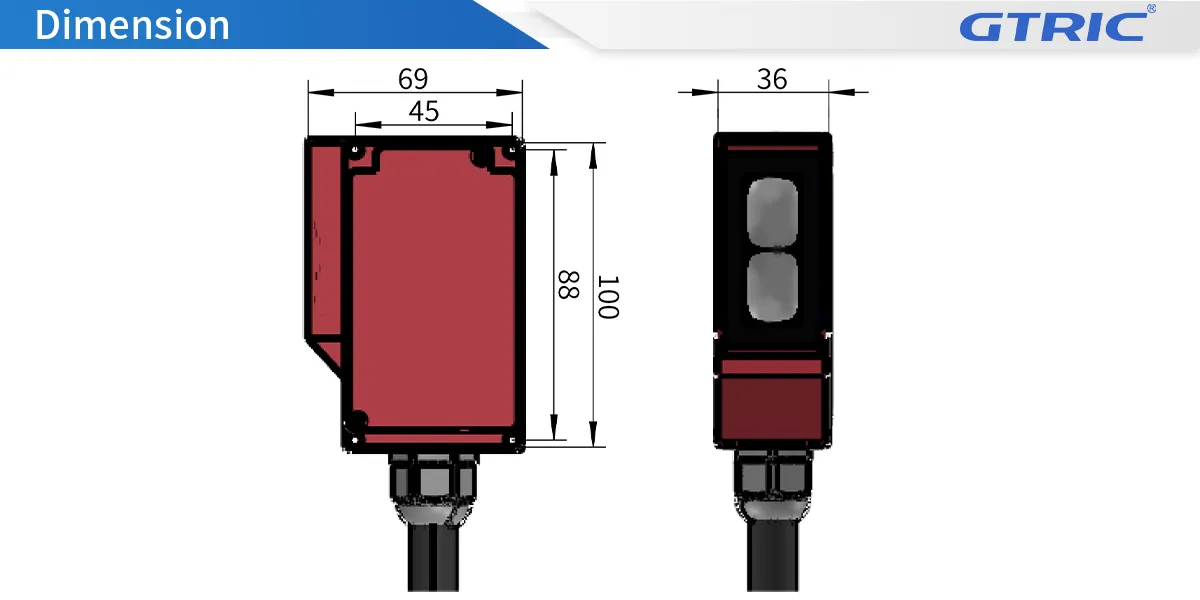

IP67 Protected Through-beam Photoelectric SensorIP67-Dimensions

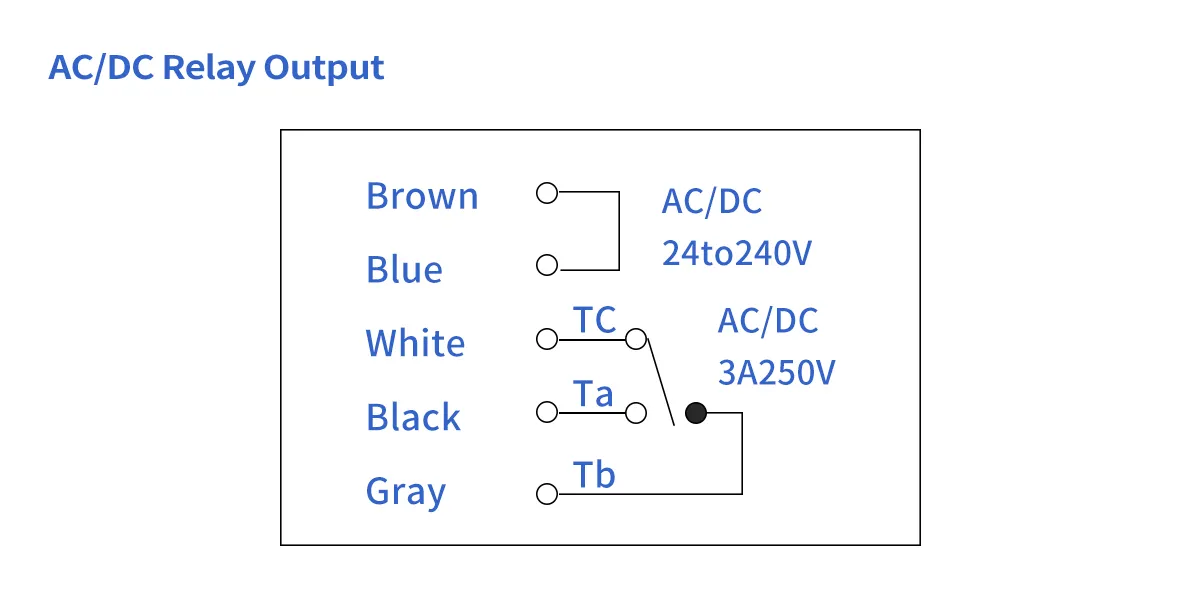

IP67 Protected Through-beam Photoelectric SensorIP67-Wiring
