KS-C2 Series Photoelectric Sensor

Widely applicable in packaging machinery, printing, and automated production lines, the KS-C2 series excels in accurately detecting color marks in high-speed operations, ensuring process precision and product quality. For clients seeking efficient and precise detection solutions, the KS-C2 series is an ideal choice.
  • Housing Size：22*45*89 MM Square
  • Sensing Distance：12±2mm
  • Output Method：DC 4-Wire NPN/PNP
  • Connect：Cable
  • Spot size ：φ1-φ1.5MM
Request a Quote
PDF Download

Product Description And Features

The KS-C2 series color mark photoelectric sensor is meticulously designed for high-precision color mark detection, featuring an adjustable sensing distance of up to 12mm and a refined 1~1.5mm spot size for accurate detection of even the smallest marks. With an impressive 2kHz response frequency, it ensures precise detection in high-speed production lines and offers multiple selectable light sources to suit various background detection needs. The sensor supports NO/NC switching and NPN output, providing seamless integration into diverse control systems.

Operating on a 10-30V DC power supply and rated IP67 for protection, the KS-C2 series is built to withstand harsh industrial environments. Its robust design shields it from dust, moisture, and oil, ensuring long-term reliability. The combination of high-frequency sensing and versatile configuration enables exceptional performance in demanding conditions, helping customers enhance operational efficiency.

Technical Specifications

Technical specifications
MedelKS-C2WKS-C2GKS-C2RKS+C2BKS-C2RGKS-C2WGKS-C2WBKS-C2GB
Lamp colorWhiteGreenRedBlueRed GreenWhite GreenWhite BlueGreen Blue
Output typeNPN
Output selectionLight-ON/Dral-ON
Sensing methodCoaxial reflex
Light source chromatogramRed,green,blue,white
Light spot(color)12mm±2mm
Detection distance4 element light emitting diode
Sensitivity adjustmentAdjustment
Action indicatorRed LED
Supply voltage10-30Vdc±10%
Sensing objectOpaque object
Response frequency(F)2K Hz
Consumption current<30mA
Output current≤200mA
Protection circuitReverse polarity protection,Surgesuppressor,Short-circuit protection
Ambient illuminance1000V ACmax.,50/60 Hz for 1 min between energized parts and case
Temperatureinfluence±10% max.of sensing distance at 23° Cwithin temperature range of -25°C to 60°C

±15% max.of sensing distance at 23° Cwithin temperature range of -30’C to 65°

Voltage influence±10%max.ofsensing distancein rated voltagerange+15%
Protection degreeIP67
Connection2M PVC Cable
MeterialCase:Aluminumdie-cast(ABS);Sensing surface (lens):PMMA

Green LED(O:Easy to be detected X:Hard tobe detected)

 BlackSilverRedOrangeYellowGreenBlueIndigoPurpleWhite
Black—○○○○XXX○○
Silver○—○XX○○○○X
Red○○—XXXXXX○
Orange○XX—○○○○X○
Yellow○XXX—○○○XX
GreenX○X○○—XXX○
BlueX○X○○X—XX○
IndigoX○X○○XX—X○
Purple○○XXXXXX—○
White○X○○X○○○○—

 RED LED(O:Easy to be detected X:Hard tobe detected)

 BlackSilverRedOrangeYellowGreenBlueIndigoPurpleWhite
Black—○○○○XXX○○
Silver○—XXX○○○XX
Red○X—XX○○○XX
Orange○XX—X○○○XX
Yellow○XXX—○○○XX
GreenX○○○○—○○○○
BlueX○○○○X—X○○
IndigoX○○○○XX—○○
Purple○XXXX○○○—X
White○XXXX○○○○—

KS-C2 Series Photoelectric SensorKS-C2-Dimensions

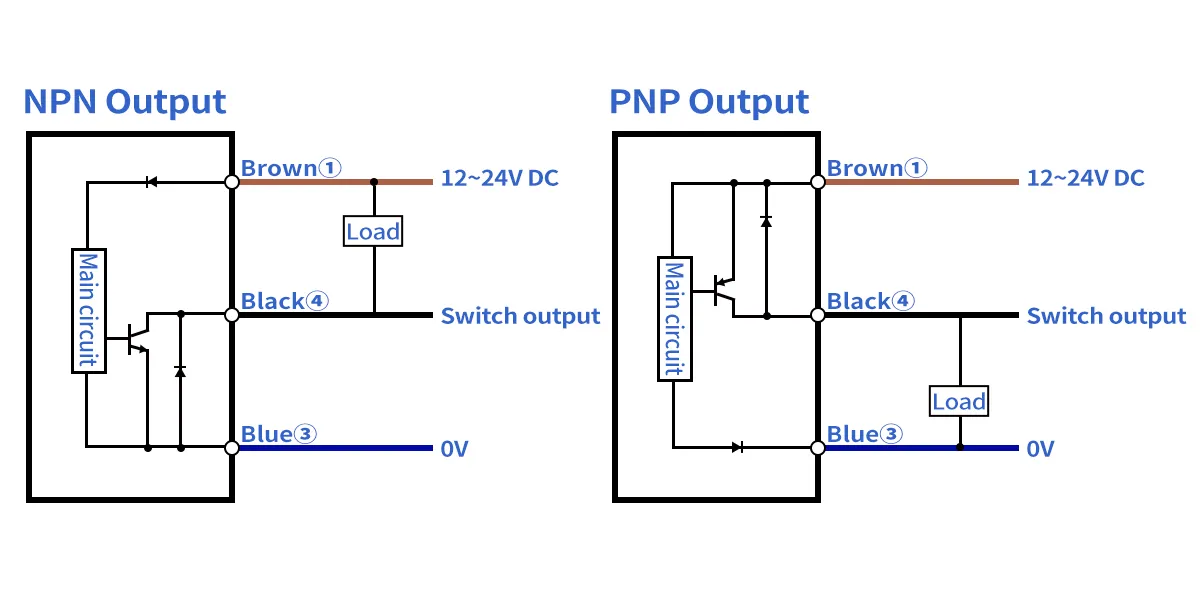

KS-C2 Series Photoelectric SensorKS-C2-Wiring 1
