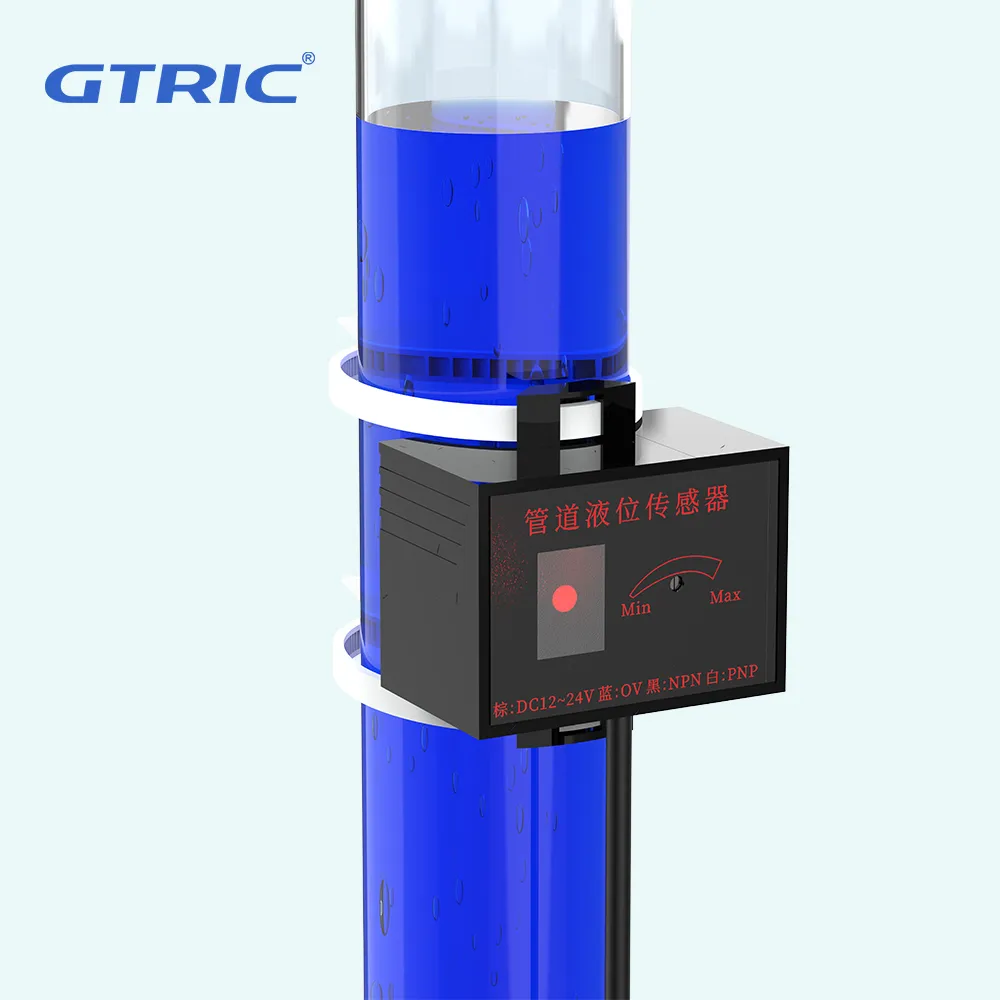

Liquid level detection capacitive Proximity Sensor-1
Liquid level detection capacitive Proximity Sensor-1

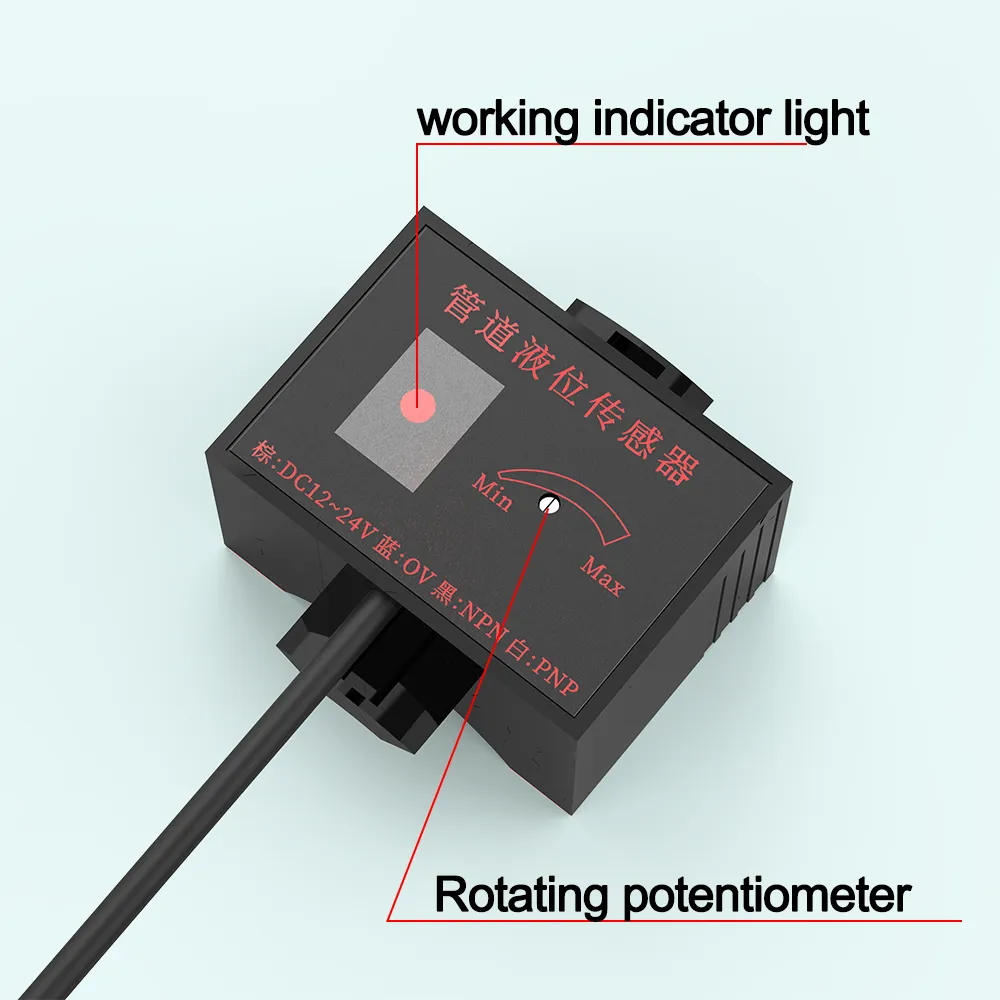

Liquid level detection capacitive Proximity Sensor-2
Liquid level detection capacitive Proximity Sensor-3
Liquid level detection capacitive Proximity Sensor-4
Liquid level detection capacitive Proximity Sensor-5

Liquid level detection capacitive Proximity Sensor

Furthermore, capacitive liquid level sensors are known for their strong resistance to electromagnetic interference, ensuring stable performance even in complex electromagnetic environments. They are durable and reliable, with a simple design that lacks moving parts, contributing to a long operational life. The sensors are also easy to install, adaptable to various installation conditions, and provide consistent and dependable liquid level monitoring in both internal and external configurations.
  • Applicable pipe materials：Non-Metal
  • Applicable pipe outer diameter：φ6-φ13MM/φ14-φ26MM
  • Output Method：DC 3-Wire NPN/PNP.NO
  • Connect：Cable
  • Protection Degree：IP66
Request a Quote
PDF Download

Product Description And Features

Capacitive liquid level sensors offer several key advantages, making them highly effective in liquid level monitoring and control applications. They are capable of detecting a wide range of liquids, including water, oil, and chemicals, without being affected by the liquid’s conductivity. This versatility makes them suitable for a variety of industrial and commercial applications.

One of the major benefits of capacitive liquid level sensors is their non-contact detection capability. They can measure liquid levels through the container walls without direct contact with the liquid, thereby avoiding issues related to corrosion or contamination and extending the lifespan of the equipment. Additionally, these sensors offer high precision and sensitivity, enabling the detection of even the slightest changes in liquid levels, which is essential for applications requiring accurate level control.

Technical Specifications

Output Flush Non-Flush
DC 3-Wire NPN/PNP.NO GT-L15 GT-L30
Detect objects liquid
Applicable pipe materials Mon-metal

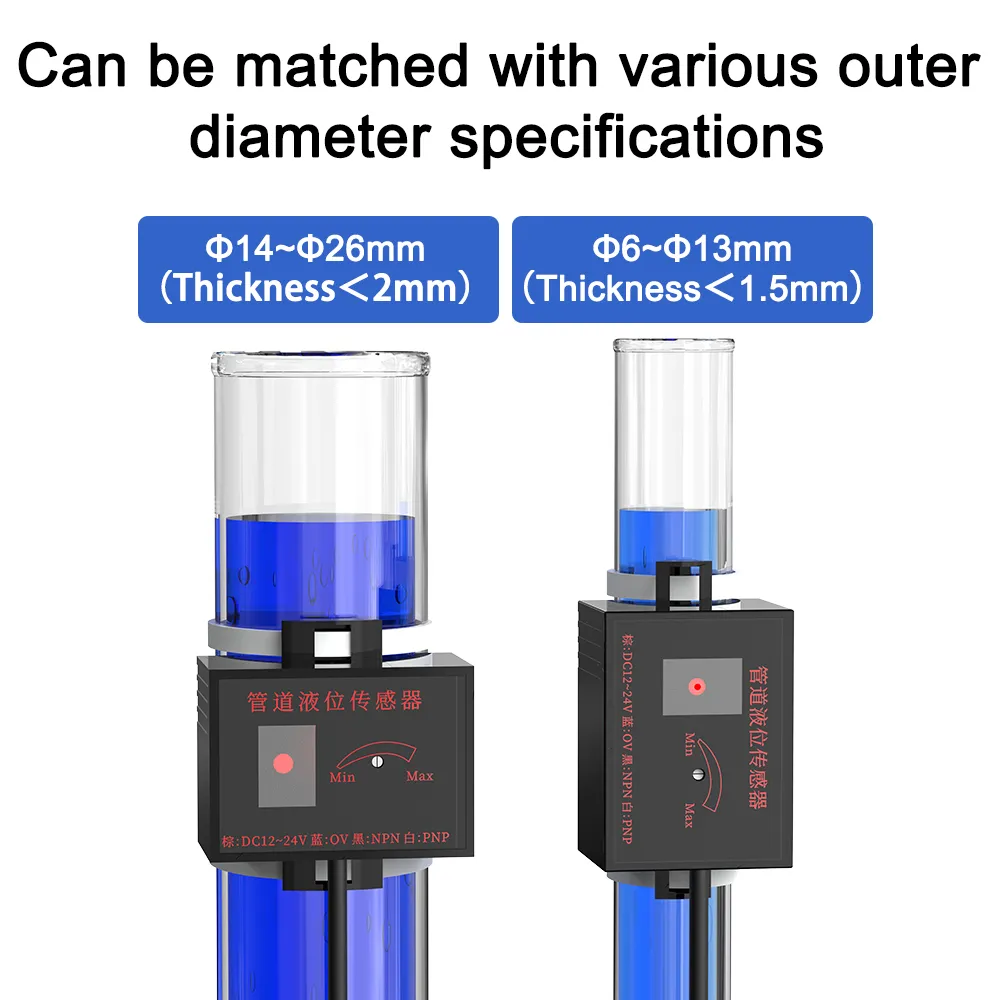

Applicable pipe outer diameter φ6-φ13mm/φ14-φ26mm
Applicable pipe wall thickness ＜1.5mm/＜2mm
Repeat distance accuracy ＜±0.2mm
Response difference 0.6~5mm/0.3~3mm

（Reference values that vary depending on pipe size and liquid）
Power supply voltage 12-24V DC
Consumption current ＜12mA
Load current ＜100mA
Residual voltage ＜1V (when load current is 100mA, wire length: 2m)
indicator light Red indicator light
ambient temperature range When using: 0~+55°C, when storing: -10~+65°C (no icing or condensation)
Ambient humidity range During use and storage: 25~85%RH each (no condensation)
Effect of temperature In the temperature range of 0~+55°C, at +23°CDetection level is ±4mm

(pure water and 20% salt water)
Effect of voltage Within the range of +10% of the rated power supply voltage range

±0.5mm of the detection level at the rated power supply voltage
Vibration 1mm amplitude, frequency 10~55Hz (1min) in each XYZ direction for 2 hours
Shock 500m/s (50G) 3 times each in X and YZ directions
Protection level IP66
Connection method Wire lead type (standard wire length 2m)
protection circuit Surge protection circuit, short circuit protection, reverse polarity protection

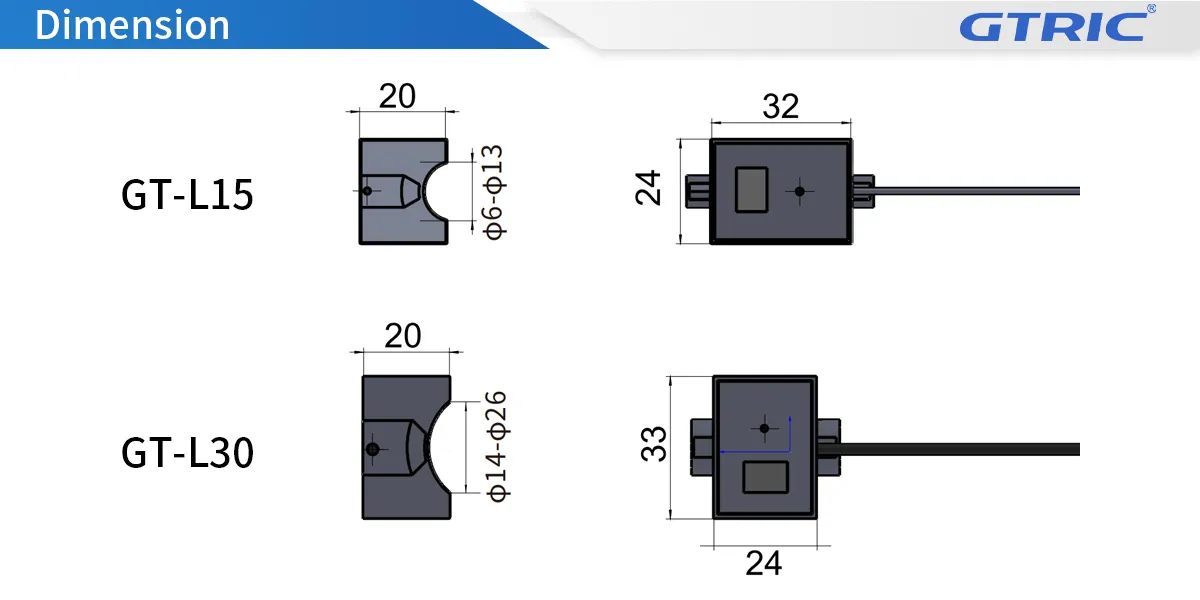

Liquid level detection capacitive Proximity Sensor-Dimensions

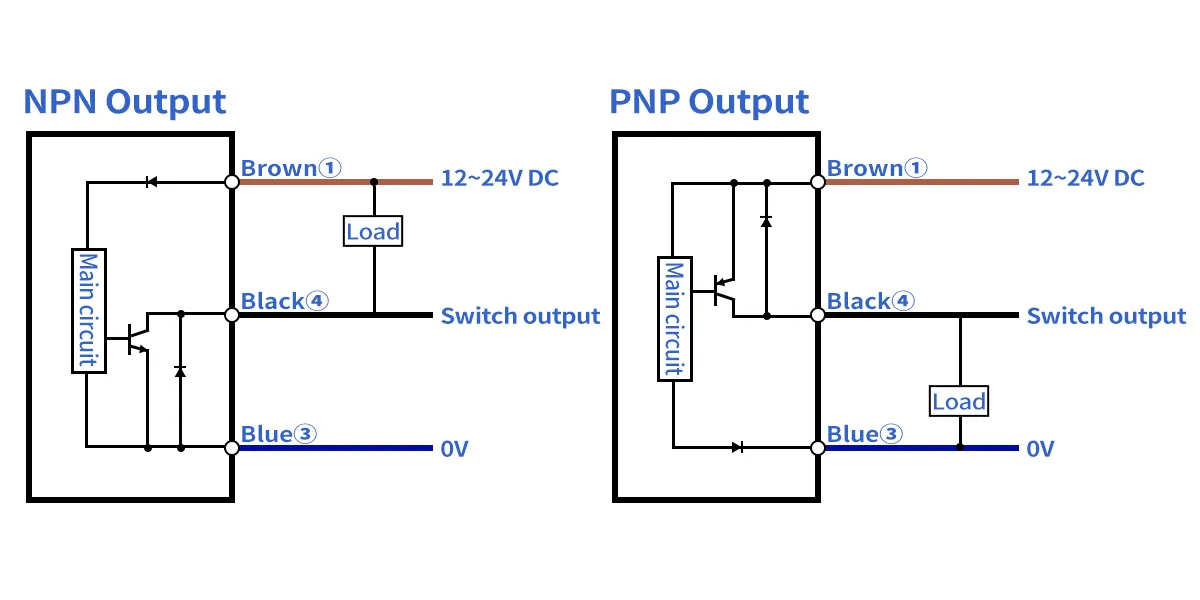

Liquid level detection capacitive Proximity Sensor-Wiring 1
