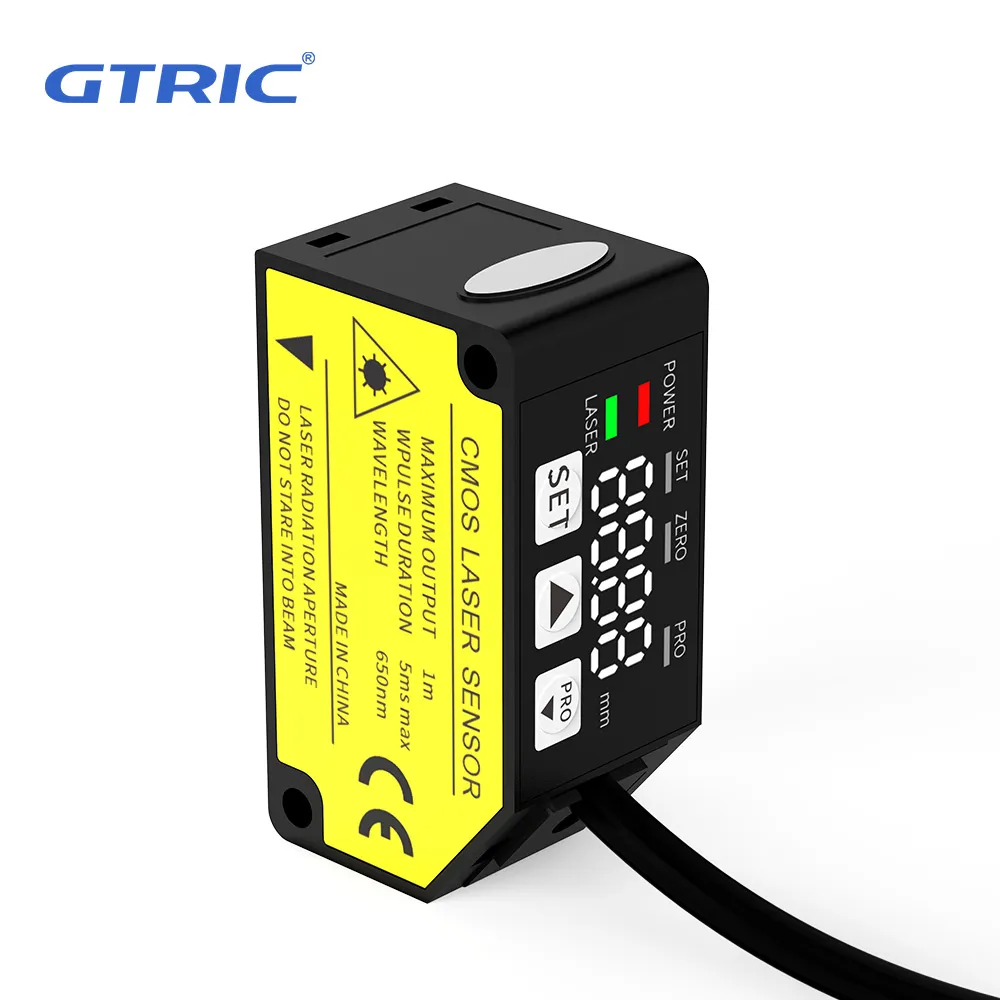

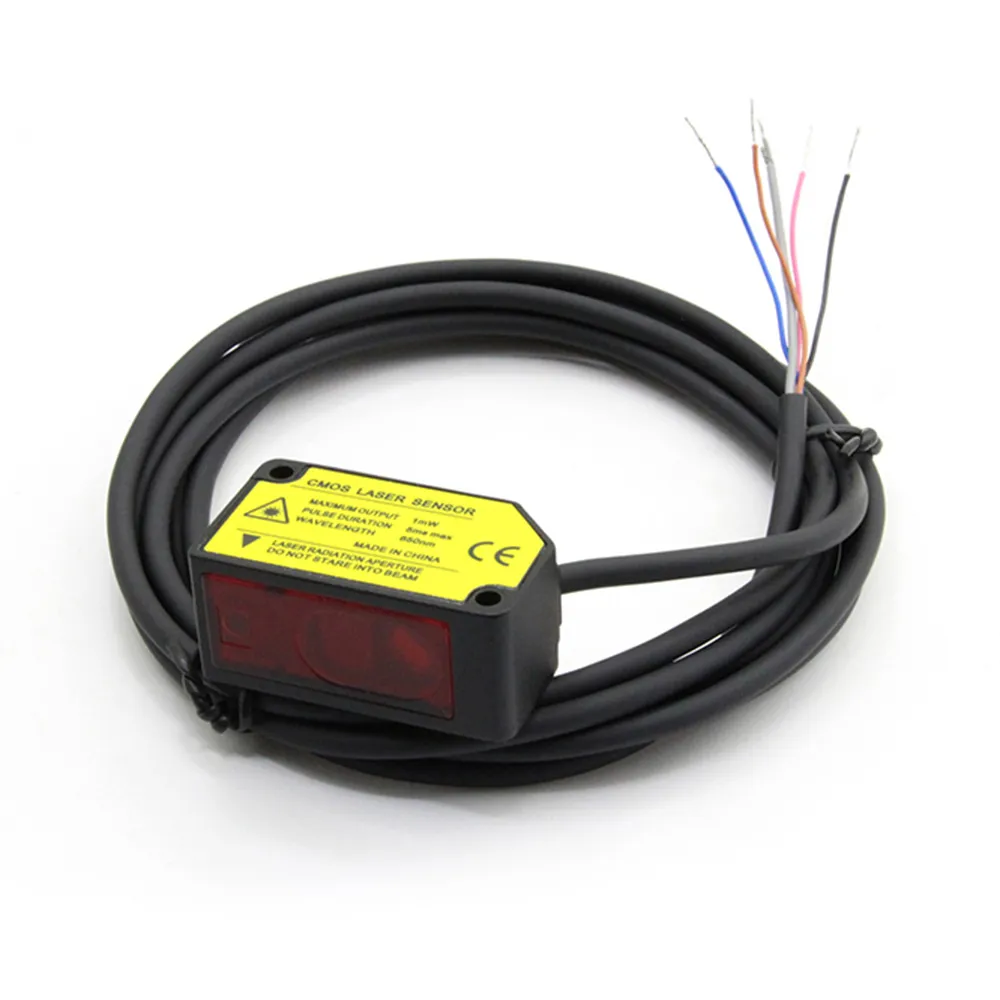

Short Distance Laser Displacement Sensor

With advanced technical capabilities and outstanding compatibility, this laser displacement sensor is the ideal solution for high-speed, high-precision measurement in various fields. Whether required for precise displacement control on automated production lines or microscopic surface measurement in quality inspection, it enhances efficiency and accuracy, providing dependable support for precision measurement tasks across diverse industrial environments.
  • Housing Size：20*25*44MM Square
  • Sensing Distance：30±5MM/50±15MM
  • Output mode：Switch/Analog output
  • Connect：Cable
  • Spot size ：2MM
Request a Quote
PDF Download

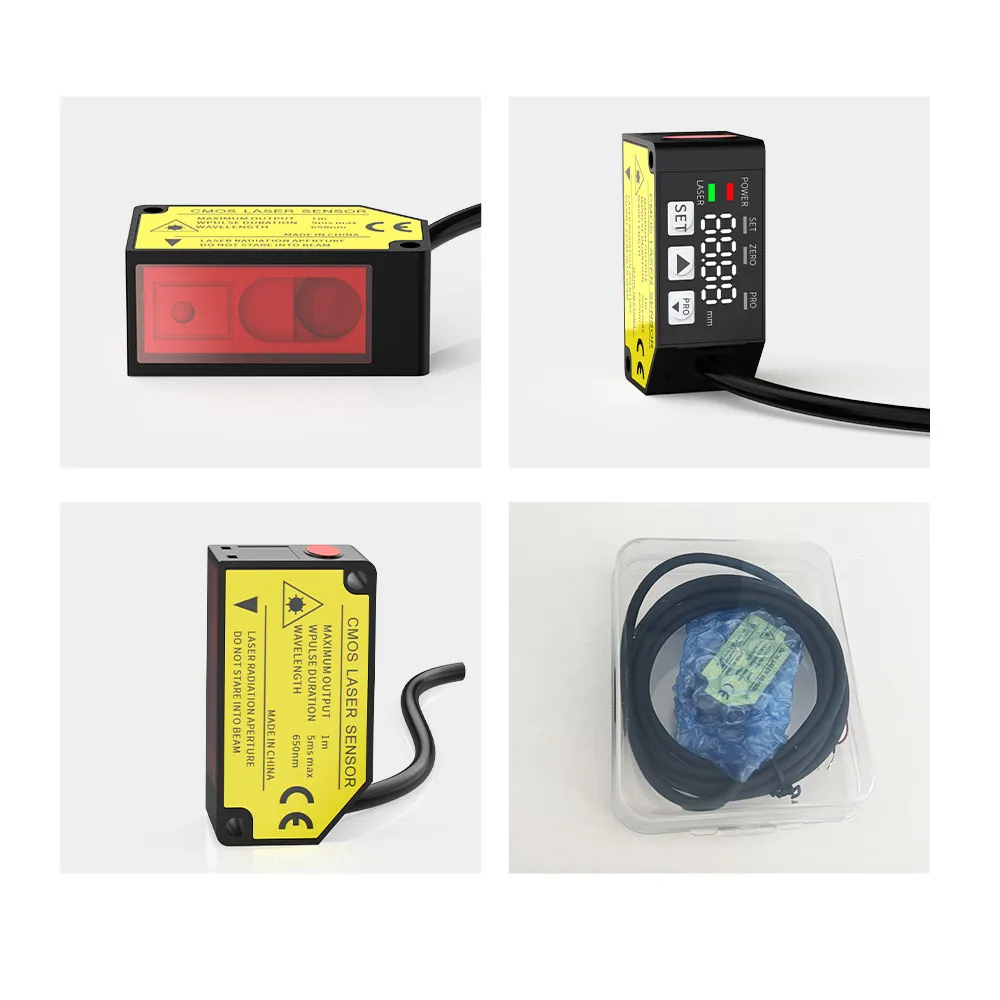

Product Description And Features

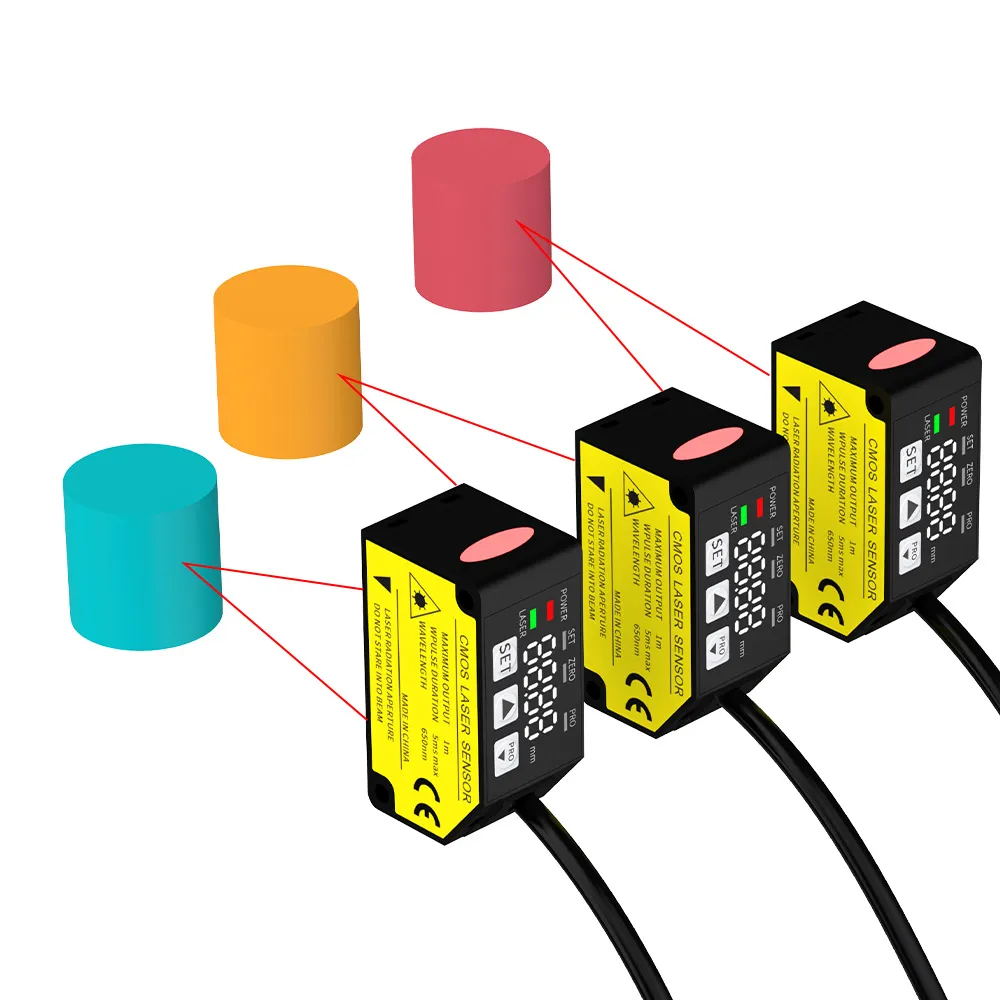

The Short Distance laser displacement sensor delivers exceptional precision and flexibility to meet the demands of high-accuracy measurement, offering two selectable measurement ranges of 30±5mm and 50±15mm for a wide range of industrial applications. Its 2mm small visible light spot ensures precise targeting, while the 10μm repeatability enables sub-micron level accuracy with ease. Additionally, its rapid 1.5ms response time ensures reliable data feedback for real-time monitoring of fast-moving workpieces, ensuring efficiency and stability in production processes.

This sensor features multiple output modes, including NPN/PNP switching outputs and 0-5V/4-20mA analog outputs, making it highly adaptable to various automated control systems. With its IP67 protection rating, the sensor is built to operate reliably in harsh industrial environments, providing effective dust and water resistance for long-term durability. Its diverse output options and robust construction make it a key component in demanding applications such as precision manufacturing, robotic systems, and automated production lines.

Technical Specifications

Model Detection distance Output mode Repeatability
LSZ-S030MN 30±5mm NPN Switch+Analog output 10μm
LSZ-S030MP 30±5mm PNP Switch+Analog output 10μm
LSZ-S050MN 50±15mm NPN Switch+Analog output 50μm
LSZ-S050MP 50±15mm PNP Switch+Analog output 50μm



Technical specifications
Type Switch+Analog output
Model NPN output LSZ-S030MN LSZ-S050MN
PNP output LSZ-S030MP LSZ-S050MP
Measuring center distance 30MM 50 MM
Detection scope ±5mm ±15mm
Repeatability 10μm 50μm
straight line deviation ±0.2%F.S ±0.2%F.S
Temperature characteristic 0.03%F.s./C
light source Red semiconductorlaserClass2 ,maximumoutput: 1mW

wavelength oflight beam:655nm
Beam diameter Aboutφ50μm Aboutφ100μm
Supply voltage 12V~24VDC+10%pulseP-P10%
Consumption current 40mAorless (when the power supply voltage is 24V DC),

60mAor less (when the powersupply voltage is 12VDC)
Control Output NPN Output

NPN Open CollectorTransistors

Maximum inflow current: 50mA

Applied voltage:below30VDC

(between controloutput-0V)

Residual voltage:15Vorless

(Inflow current50mAorless)

Leakage current: below0.1mA

 PNP Output

PNP Open CollectorTransistors

Maximum inflow current: 50mA

Applied voltage: below30VDC

(between control output-+V)

Residual voltage:15Vorless

(Inflow current50mAorless)

Leakage current:below0.1mA
Output Action NO when receiving light / NO when not receiving light. Switchable
Short circuit protection Equipped(automaticrecoverytype)
Analog

output

 Voltage analog output

(Alarm:+5.2V)

 Output range:0V-5V

Output lmpedance:10000Ω
Current analog output

(Alarm: 0mA)

 Output range:4-20mA

Load impedance: 3000Ωor less
Response Time 1.5ms/5ms/10ms switchable
Extemal Output NPN/PNP non-contactinput

Effective:0V~+1.2VDC input impedance: 10KQ
Protective structure IP67(IEC)
Degree of defacement 2
Operating temperature -10°C~+40’C(be carefulnotto condenseorfreeze)

during storage: -20°C~+60°C
Use environment humidity 35%~85%RH,duringstorage: 35%~85%RH
Use the elevation Incandescent lamp: Illuminance on the illuminated surface is less than 3,000Lx
Ambient temperature Below 2000M
Cable 2m with 5-core composite cablein 0.15mm
Material Body shell: aluminum casting Front cover: acrylic
Applicable specifications Conforms to EMC Directive

*Power supply voltage: 24V DC, ambient temperature: +20°C, response time: 10ms, analog output value for measuring center distance for unspecified measurement conditions. Subject: White Paper. Target: White Paper

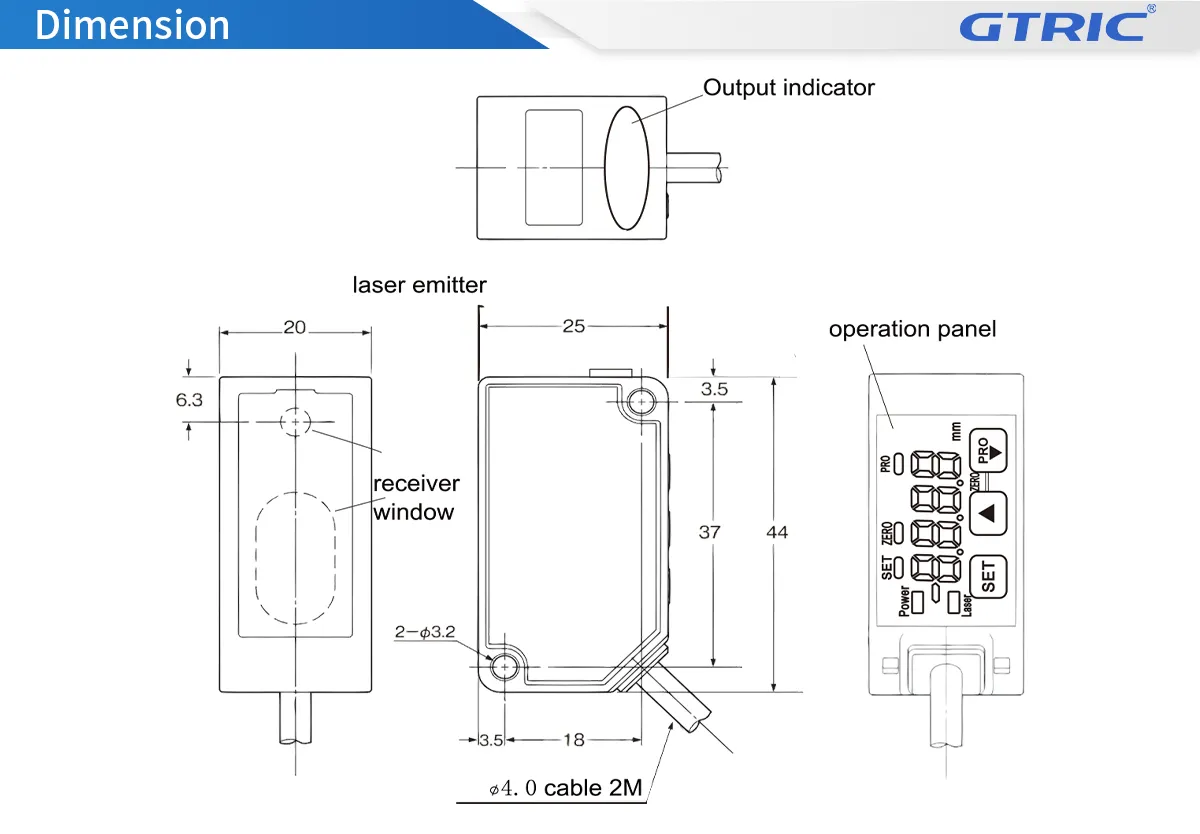

Short Distance Laser Displacement Sensor-Dimensions
