Product Description And Features

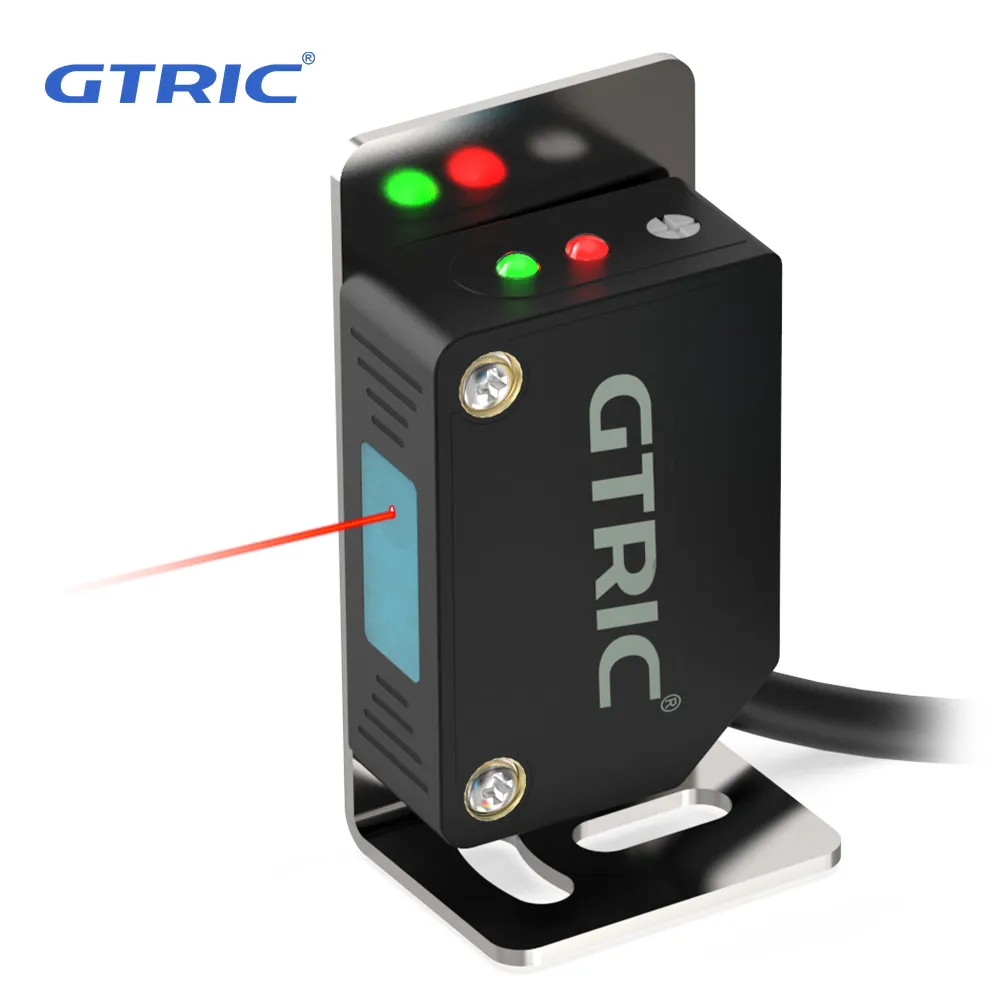

The square diffuse reflective laser photoelectric sensor utilizes advanced laser technology, specifically engineered for industrial automation applications in a compact form. It features a 300mm adjustable sensing distance, precisely modifiable through a built-in top-mounted potentiometer, allowing it to adapt to a wide range of detection requirements. With its 2 mm visible light spot, it ensures highly accurate object detection and precise sensing direction, even under challenging lighting conditions.
Widely used in industries such as material handling, food packaging, beverage bottling, and automotive manufacturing, this sensor performs essential tasks like detecting material presence and ensuring packaging integrity. Its high precision, reliability, and flexibility significantly enhance detection efficiency, making it an indispensable solution for modern smart manufacturing environments.
Technical Specifications

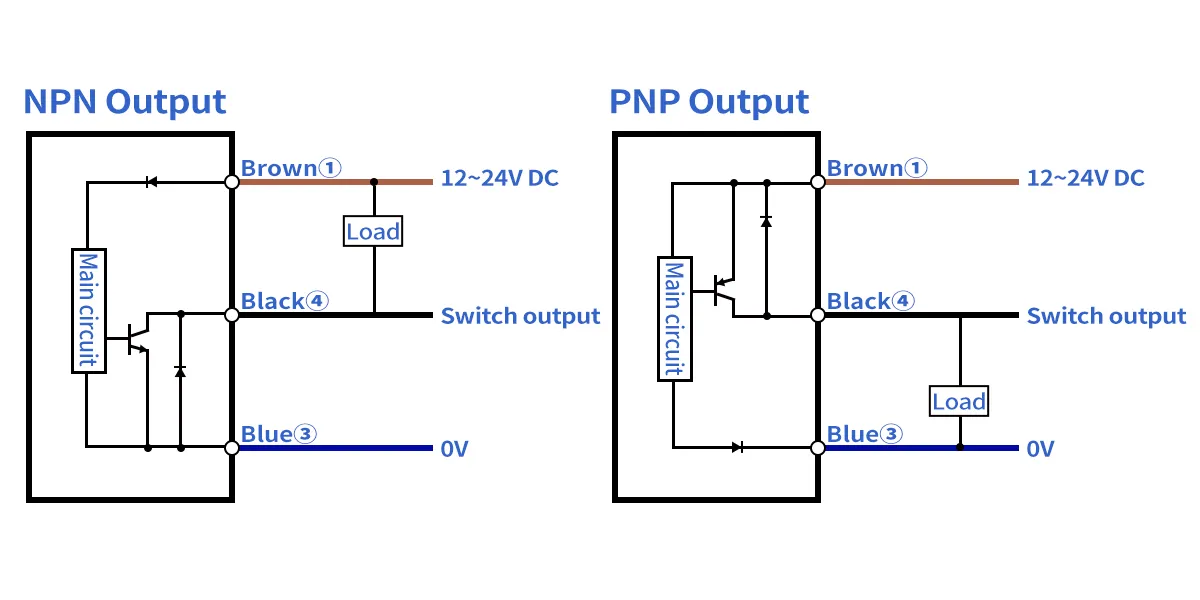

| Output | Model |
| DC 3-Wire NPN NO | LSZ-S30N1 |
| DC 3-Wire NPN NC | LSZ-S30N2 |
| DC 3-Wire PNP NO | LSZ-S30P1 |
| DC 3-Wire PNP NC | LSZ-S30P2 |
| Technical specifications | |
| Detection type | Diffuse reflection |
| Sensing distance | 300MM(Adjustable) |
| Adjustment method | Top potentiometer |
| Spot size | 2MM/1MM/0.5MM |
| Supply voltage | 12-24V DC |
| light source | infrared light (880nm) |
| Current Rating | 20mA |
| Leakage Curren | ≤0.6mA |
| Response Time | 5ms |
| Response frequency(F) | 500Hz |
| load current | 200MA |
| Residual voltage | ＜1V |
| Circuit protection | Short-circuit ,EMl protectionrever sepolarityprotection |

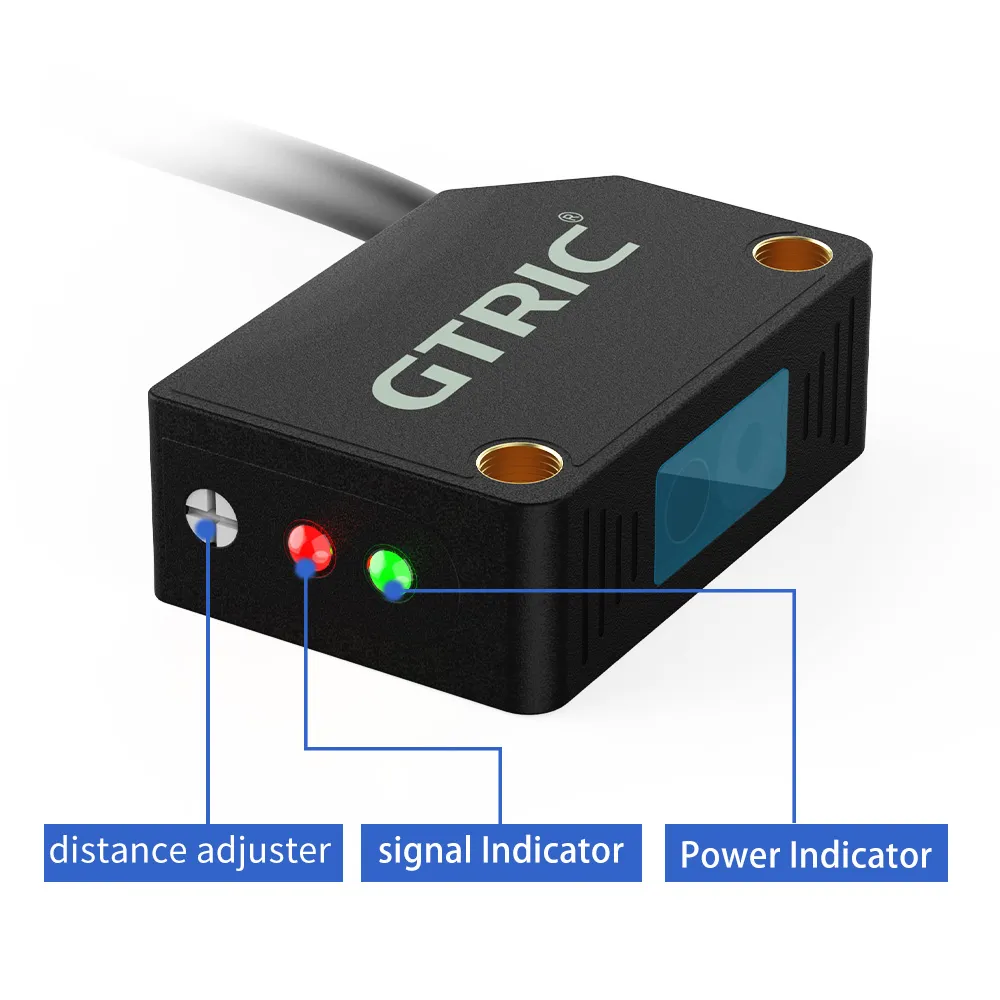

| Indicator light | Green LED (power indicator) Red LED (sensing indicator) |
| Ambient illuminance | incandescent light≤3000Lux sunshine≤1000Lu |
| Ambient temperature | 0-55℃ |
| Vibration | 1mm amplitude at frequency 10~55Hz(for 1 min）ineach X.Y.Z direction for 2 hours |
| Protectiondegree | IP65 |
| Connection | 2M PVC Cable |
| Meterial | ABS |
