Product Description And Features

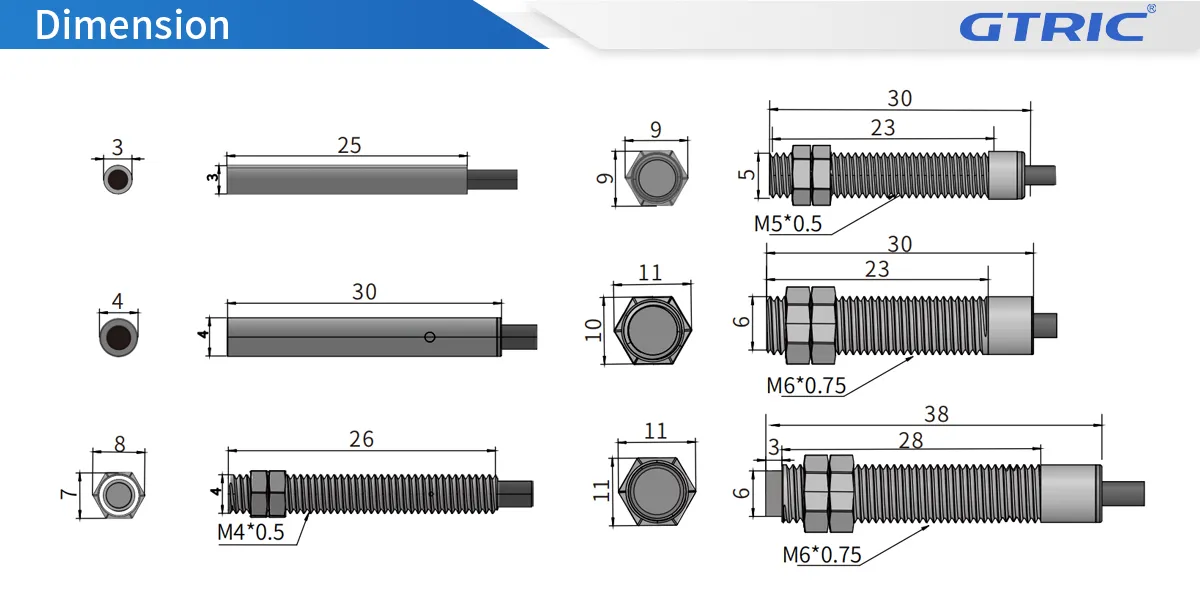

M3 Micro Inductive Proximity Sensor switch revolutionizes non-contact position detection, presenting a reliable alternative to contact switches in scenarios necessitating high-speed response detection, cost-effectiveness, and extended service life. Boasting a compact shell size of Φ3 bare rod, a power supply voltage range of 10-30V, and the option of NPN or PNP output,makes it a versatile and adaptable solution for diverse industrial applications.Furthermore, its IP67 level protection ensures resilience in harsh industrial environments.
Technical Specifications

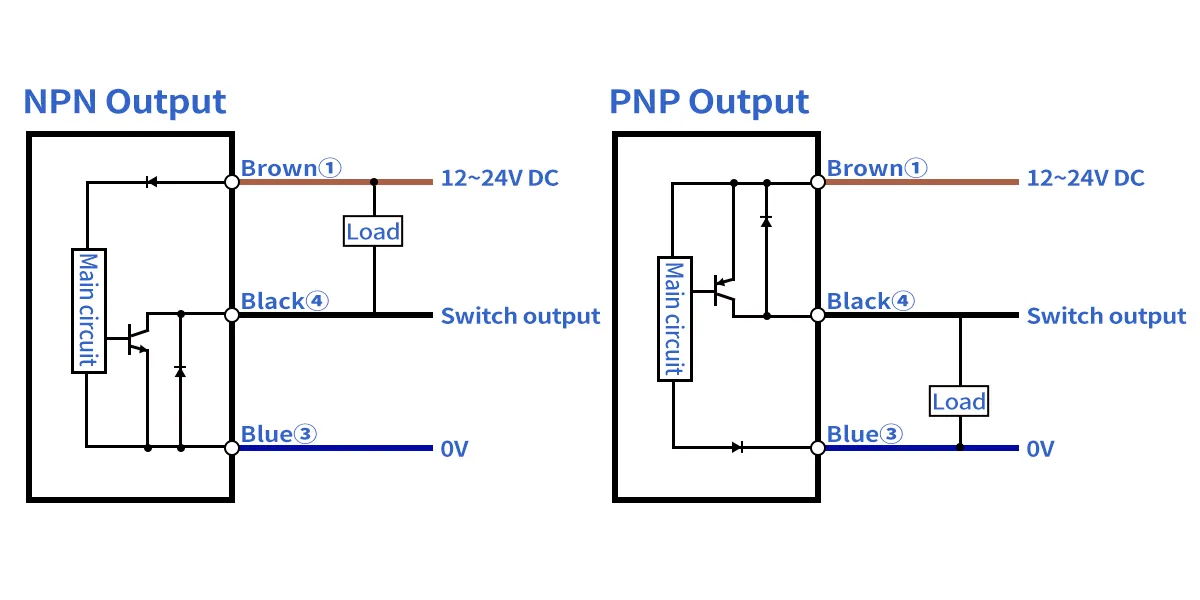

| DC 3-Wire NPN NO | LR03-01N1 |
| DC 3-Wire NPN NC | LR03-01N2 |
| DC 3-Wire PNP NO | LR03-01P1 |
| DC 3-Wire PNP NC | LR03-01P1 |
| Mounting | Flush |
| Sensing Distance | 1MM±10% |
| Setting Distance(Sa) | 0-1MM |
| Hysteresis | ≤10% |
| Standar dsensing target | 5*5*1MM（iron） |
| Supply Voltage | DC:10-30V |
| Leakage Current | ≤0.6mA |
| Response frequency(F) | 500Hz（DC） |
| Consunption current | DC 3-wire NPN/PNP：≤10mA ; DC 2-wire：≤3mA |
| Load current | 200mA |
| Voltage drop | ≤2.5V |
| Circuit protection | Short circuit, overload, reverse polarity protection |
| Output indicator | Red LED |
| Ambient temperature | -20~+70℃ |
| Shock | 500m/s(50G) ineach X,Y,Z direction for 3 times |
| Vibration | 1mm amplitude at frequency 10~55Hz(for 1 min）ineach X.Y.Z direction for 2hours |
| Protectiondegree | IP67(IEC standards) |
| Connection | 2M PVC Cable |
| Meterial | Nickel-copperalloy |
| Sensingside | PBT |
