Product Description And Features

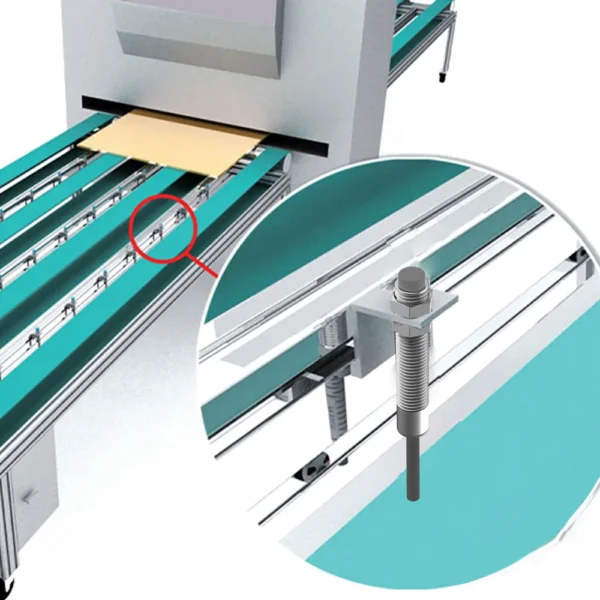

In the realm of industrial automation control, precision and efficiency are paramount. GTRIC’s miniature inductive proximity sensor switch stands out for its exceptional sensitivity, high repeatability, and widespread application in industrial automation control. This sensor harnesses the power of the eddy current principle within its internal circuit to effectively detect various metal objects, offering unparalleled performance in the field.
Technical Specifications
|

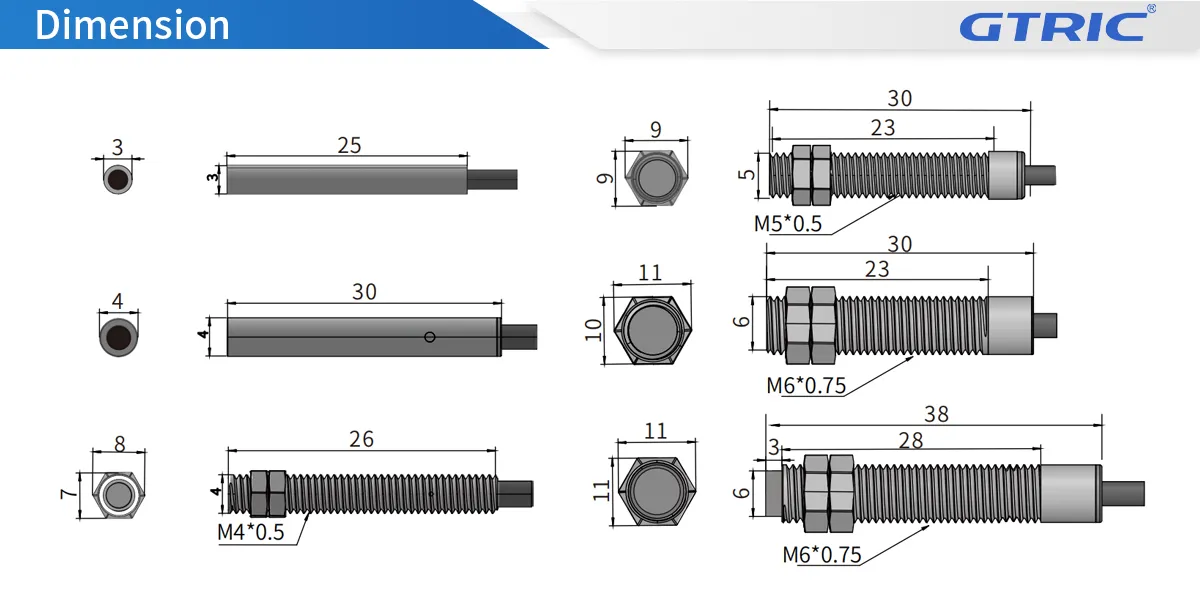

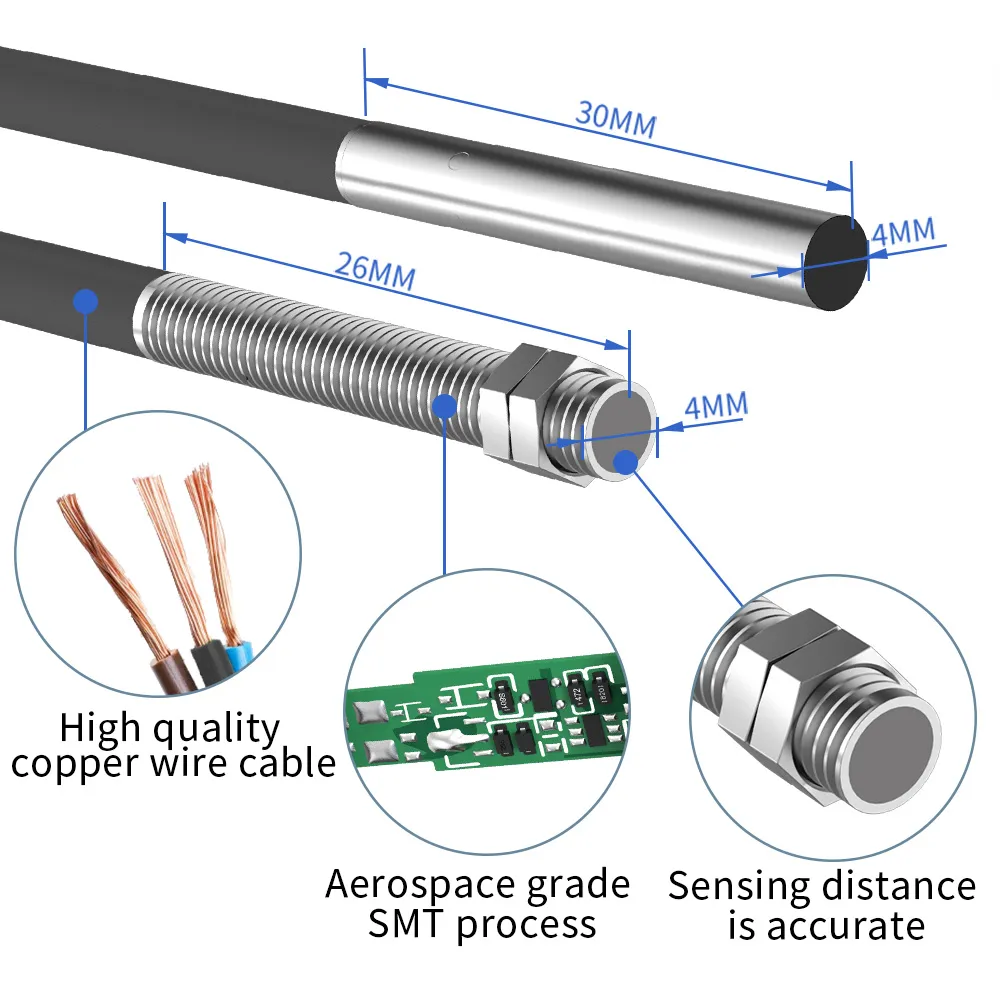

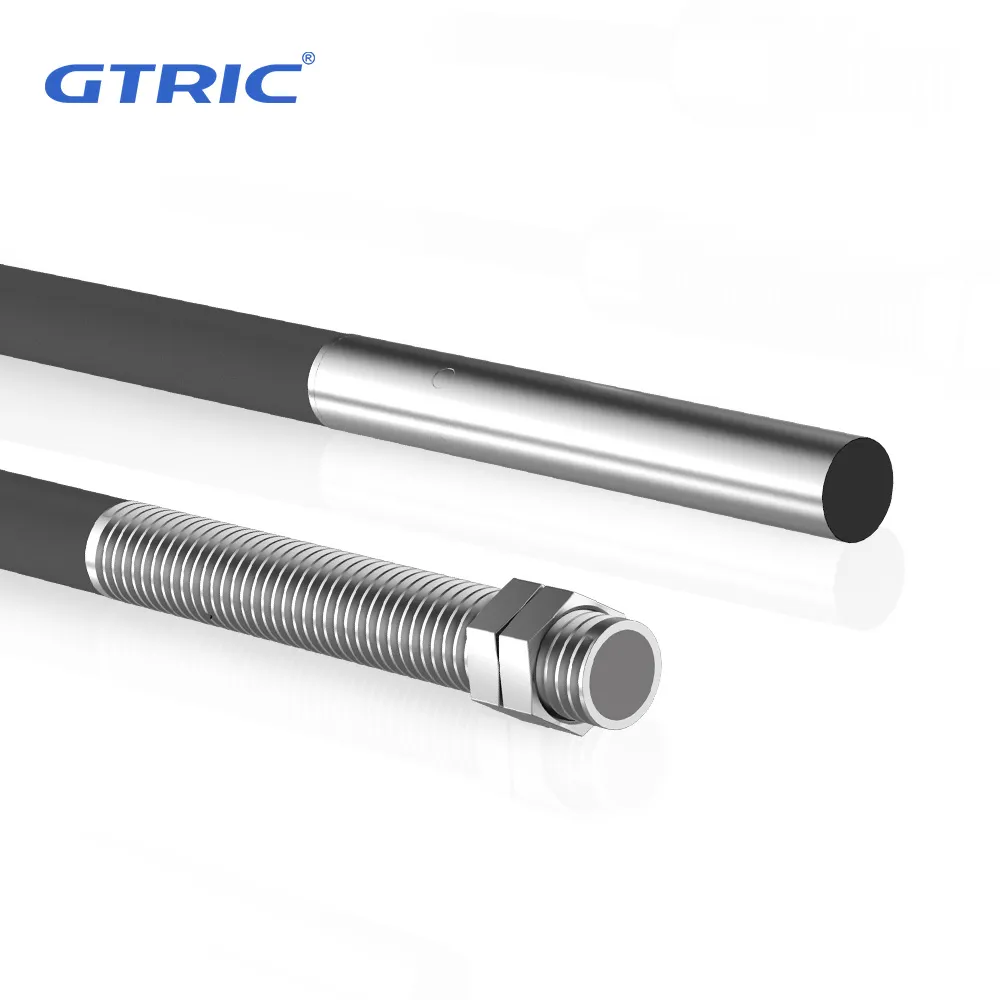

Φ4 Bare Rod |
M4 Threaded Rod |

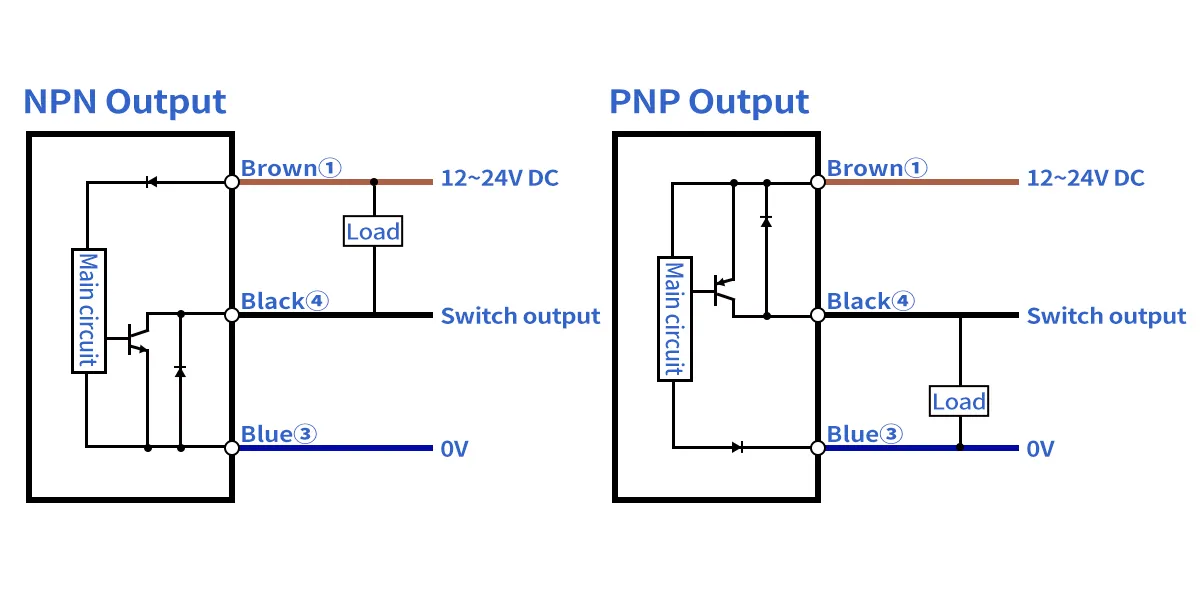

DC 3-Wire NPN NO |
LR04-01N1 |
LR04L-01N1 |
DC 3-Wire NPN NC |
LR04-01N2 |
LR04L-01N2 |
DC 3-Wire PNP NO |
LR04-01P1 |
LR04L-01P1 |
DC 3-Wire PNP NC |
LR04-01P1 |
LR04L-01P1 |
Mounting |
Flush |
Sensing Distance |
1MM±10% |
Setting Distance(Sa) |
0-1MM |
Hysteresis |
≤10% |
Standar dsensing target |
5*5*1MM(iron) |
Supply Voltage |
DC:10-30V |
Leakage Current |
≤0.6mA |
Response frequency(F) |
500Hz(DC) |
Consunption current |

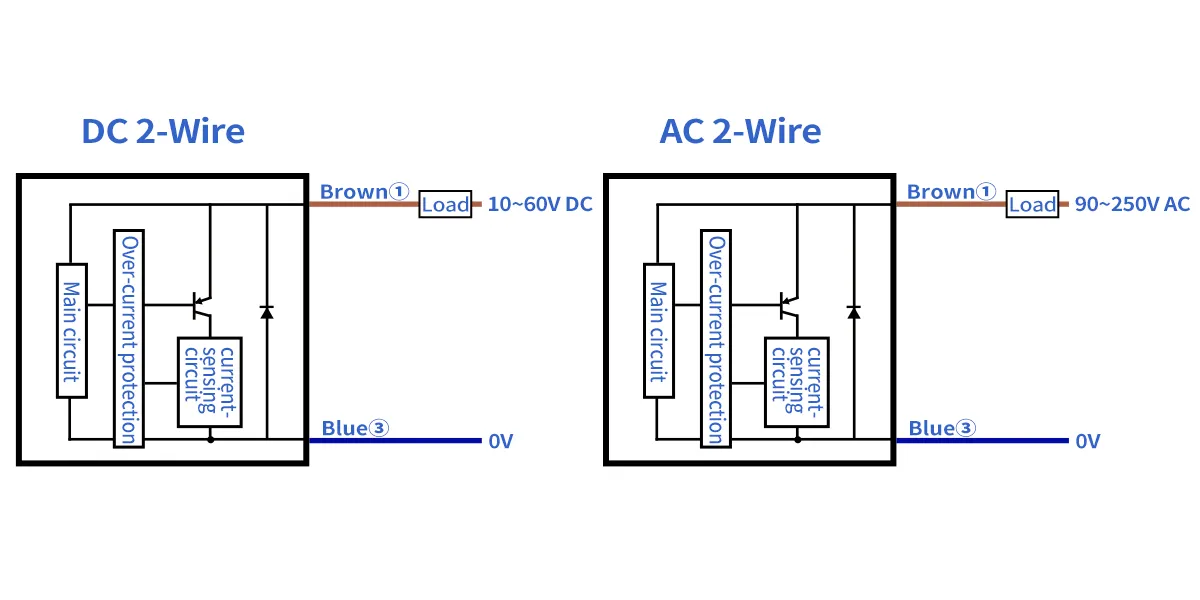

DC 3-wire NPN/PNP:≤10mA ; DC 2-wire:≤3mA |
Load current |
200mA |
Voltage drop |
≤2.5V |
Circuit protection |
Short circuit, overload, reverse polarity protection |
Output indicator |
Red LED |
Ambient temperature |
-20~+70℃ |
Shock |
500m/s(50G) ineach X,Y,Z direction for 3 times |
Vibration |
1mm amplitude at frequency 10~55Hz(for 1 min)ineach X.Y.Z direction for 2hours |
Protectiondegree |
IP67(IEC standards) |
Connection |
2M PVC Cable |
Meterial |
Nickel-copperalloy |
Sensingside |
PBT |
